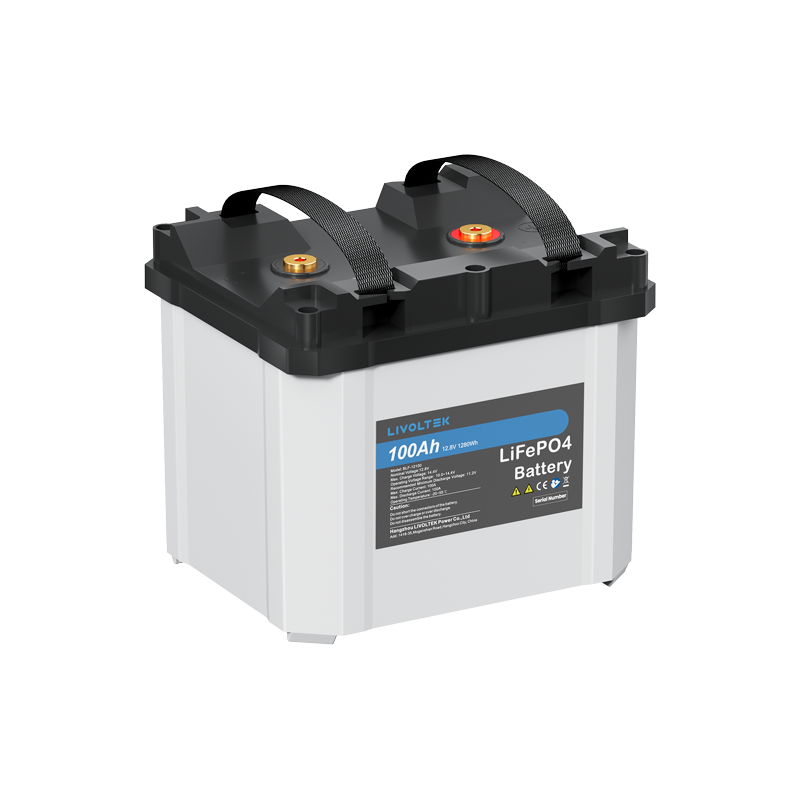

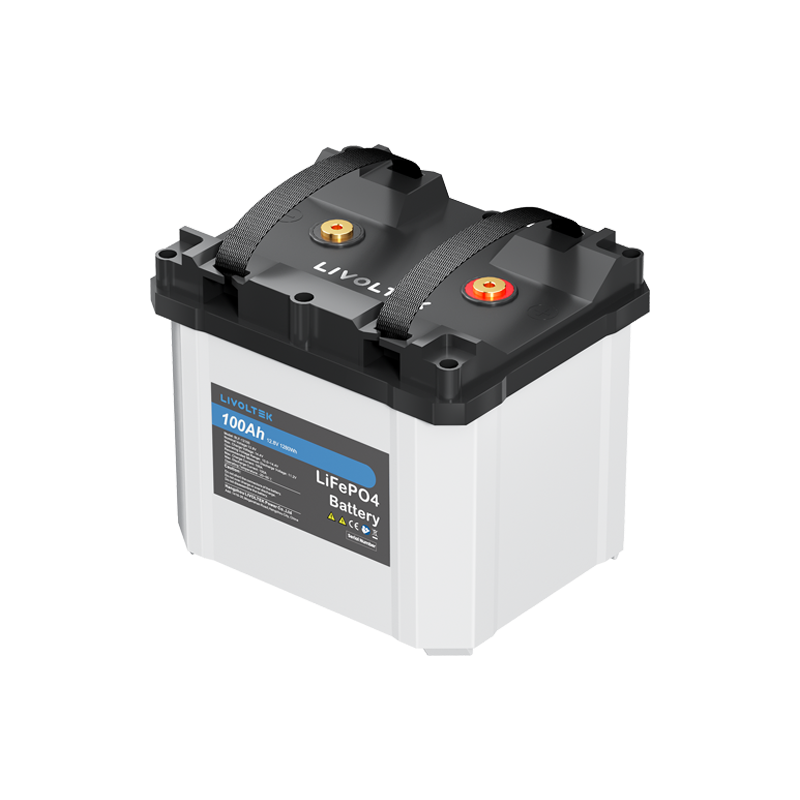

Lithium Battery – Low Voltage 1.28kWh(12.8V 100A) Natural Cooling LFP Batteries

SKU BLF-12100R21001 Categories ,

Price:

Original price was: $5,290.00.Current price is: $317.40.

Safe & Flexible to Use
Operating within a widely temperature range of -20 to 55 degrees.
Deep cycles, automatically cut off power when reaching the cut-off voltage.

Long-lasting Endurance
Supports up to 6000 charge-discharge cycles.
Supports 4-series boosting to form a 51.2V system

Modular Expansion
Maximum support for 4-series and 4-parallel
expansion, reaching a total capacity of 40kWh

User Friendly
Low price – with costs essentially on par with those of lead-acid batteries of the same level
Lightweight – 1/3 the weight of lead-acid batteries of the same capacity

100 in stock

BLF series Li-ion Battery is a reliable and cost-effectiveenergy storage solution. With its high-quality materials and advanced manufacturing process, BLF series offers high energy density, long cycle life, and excellent performance,and it also guarantees safety, efficiency, and environmental friendliness. Supports up to 2 cells in series and 4 cells in parallel, with a maximum capacity of 2*4*single-cell kWh
Features:

  • Grade A battery cell
  • 6000 cycle life
  • Supports lithium battery series and parallel connection (maximum support 2 series, 4 parallel)
  • Maximum discharge depth 100%
  • Three-year warranty

Safe & Flexible to Use
Operating within a widly temperature range of -20 to 55 degrees.
Deep cycles, automatically cut off power when reaching the cut-off voltage.

Long-lasting Endurance
Supports up to 6000 charge-discharge cycles.
Supports 4-series boosting to form a 51.2V system

Modular Expansion
Maximum support for 4-series and 4-parallel
expansion, reaching a total capacity of 40kWh

User Friendly
Compatible with all off-grid inverters and hybrid inverters on the market (requiring such inverters to support the lithium battery working mode).
Low price – with costs essentially on par with those of lead-acid batteries of the same level
Lightweight – 1/3 the weight of lead-acid batteries of the same capacity

Weight

10 kg

Dimensions

33.3 × 22.37 × 17.55 cm

Model

BLF-12100

Cell Type

LFP

Nominal Voltage(V)

12.8

Operating Voltage Range(V)

10.0~14.4

Rate Capacity(Ah)

100

Total Energy(kWh)

1.28

Rated Charge Discharge Current(A)

50/50

Max Charge Discharge Current(A)

100/100

Depth of Discharge

100%

Operating Temperature (℃)

Charge: 0~55℃

Operating Humidity

5%~95%

Operating Altitude

< 4000m

Cooling Type

Natural

Protection Rating

IP65

Terminal

M8 * 16

Cycle Life

6000 Cycles¹

Warranty

3 Years

Dimensions(mm)

333*223.7*175.5

Weight(kg)

10

[1]: Test conditions: 0.5C Charge/0.5C Discharge, @25, 90% DOD, 70% EOL.

.
